Whole bridge cutting machine is under PLC control with cutting dimensions set by terminal input. All the operations are executed either manually by the operator or automatically by the program carrying out parallel cuts with max 8 different dimensions repeatable up to 1999 times. The switchboard, with operation buttons, programmer and liquid crystal display on, is mounted on the right hand side of the machine. The switchboard can make the operator control the machine easily from the sawing area when the stone is being positioned. The saw is equipped with a laser illumination system to aid in lining up the cut. It is blade head can be rotated at 90 degree and the cut is controlled by an inverter.

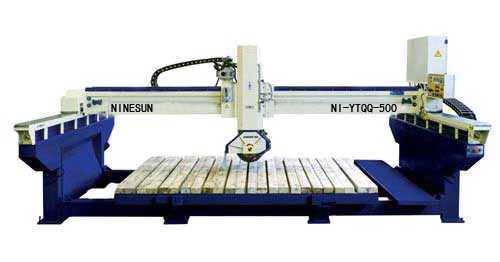

NI-YTQQ-500
| YTQQ-500 | ||
| Max.working dimensions (L×W×H) | mm | 3200×2000×80 |
| Max.diameter of table | mm | 500 |
| Table dimensions(L×W) | mm | 3200×2000 |
| Table tilting degree | n° | 0-85 |
| Table rotating degree | n° | 90 |
| Main motor power | KW | 15 |
| Water consumption | m3/h | 4 |
| Overall dimensions(L×W×H) | mm | 6000×2700×2250 |
Whole bridge cutting machine adopts mono-block crossbeam automatic moving technique, front-back, left-right, up-down locating automatically, and the blade adapter can move to left and right. Also, the workbench can automatically turn the slate up to an angle of 85 degree. This stone cutting machine is controlled by microcomputer, and can automatic cutting completely. The main electrical parts and components of the bridge saw machine (such as laser reticule apparatus, magnetic rule, frequency converter etc.) are all of imported good quality materials, which guarantee the bridge cutting machine has high precision. The switchboard on the bridge saw machine, with operation buttons, programmer and liquid crystal display, is mounted on the right hand side of the machine. The switchboard can make the operator control the machine easily form the sawing area when the stone is being positioned. The stone cutting machine adopts automatic programmable electric controlling device and fluid drive to assure stable quality and excellent cutting performances. With integrated structure, the bridge cutting machine features high strength, deformation resistance and long service life. It is particularly applicable to cutting valuable and large stone plates. With frequency control, the bridge cutting machine runs steadily and has less risk of damage.
Hydraulic tank
Trolley with lifting system
Cutting in X axis
Cutting in Y axis
