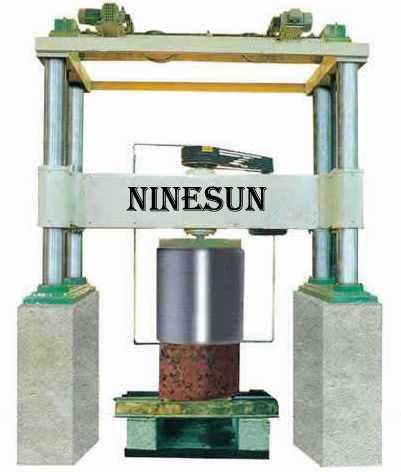

This machine is used for cutting column slab. The geometrical frame makes it absence of vibration and considerable wear resistance. The optimized electrical system and dynamic system result in high work's efficiency and low cost.
NI-YHQJ-2000
| Unit | YHQJ-2000 | |
| Max.cutting diameter | mm | 2000 |
| Max.cutting height | mm | 1400 |
| Worktable stroke | mm | 3000 |
| Cutting linear speed | m/s | 15-18 |
| Cutting feed | mm/min | 0-170 |
| Main motor power | KW | 22 |
| Water consumption | m3/h | 6 |
| Overall dimensions(L×W×H) | mm | 6500×3000×4000 |
Ninesun Stone Machine Company is a specialized manufacturer & exporter of stone cutting machine, such as column slab cutting machine, gantry cutting machine, bridge cutting machine, granite column, marble column, column seat, stone cutting machine, marble cutting machine, granite cutting machine, cap-shape cutting machine etc.
This gantry cutting machine is applicable for cutting various complex architectural revolution bodies like column slab or processing different sizes and thickness new-shaped of granites and marbles including column seats, column caps and columns and every kind of natural stones. With microcomputer control system and optical fiber measuring and monitoring system, gantry cutting machine is provided with unique cap-shape. The geometrical frame makes column slab cutting machine absence of vibration and considerable wear resistance. The optimized electrical system and dynamic system result in high working efficiency and low cost, when using the column slab to cut machine.
The head of column slab cutting machine can perform 360 degrees' rotation, and is equipped with a quick mounting system for clamping and grinding wheels as well as extension supporting rack. Bridge cutting machine can overcome the problems such as high material consumption and low precision in manual processing. Column slab cutting machine is convenient and efficient in operation, helpful for environmental protection and energy saving, and will be beneficial to comfortable and safe operations.
